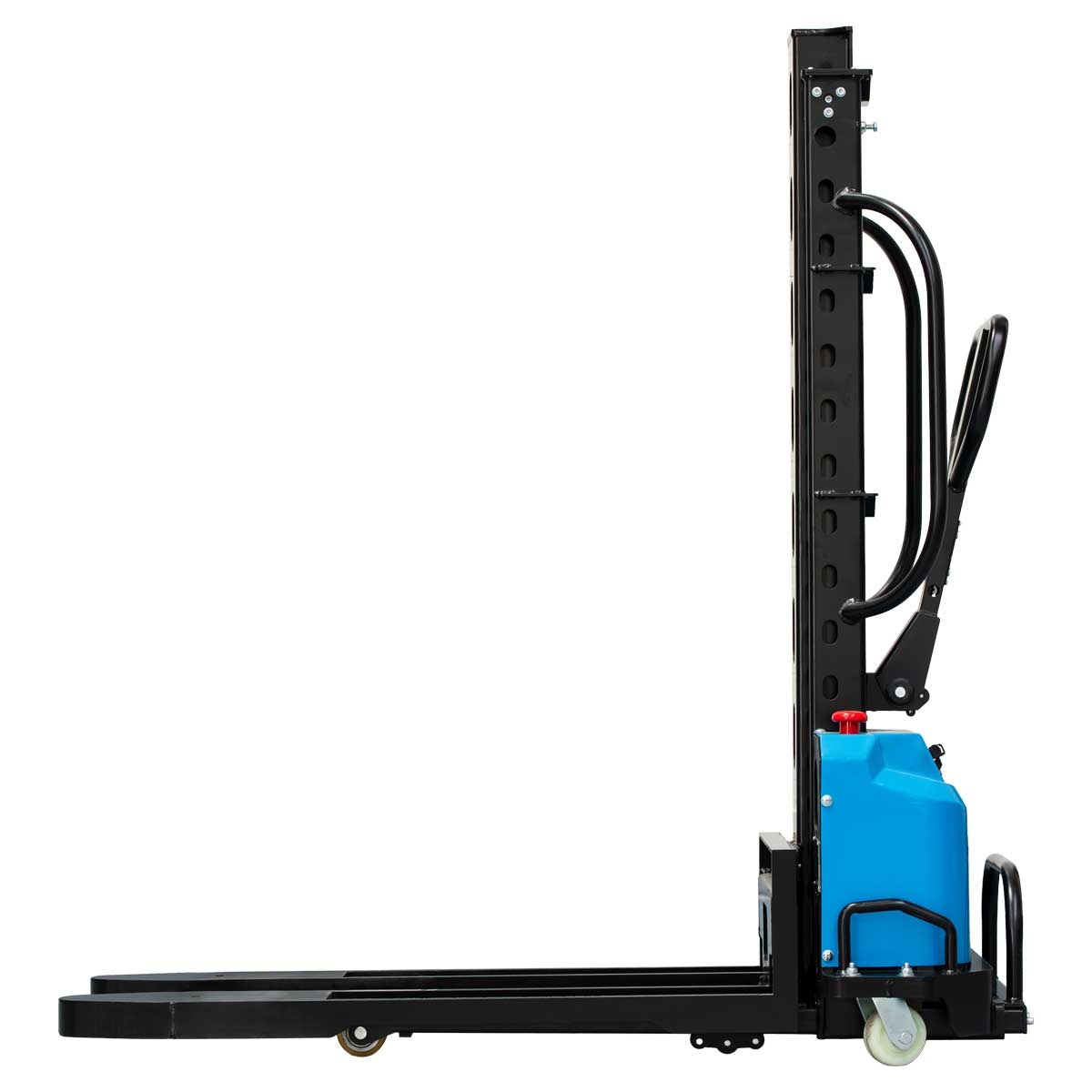

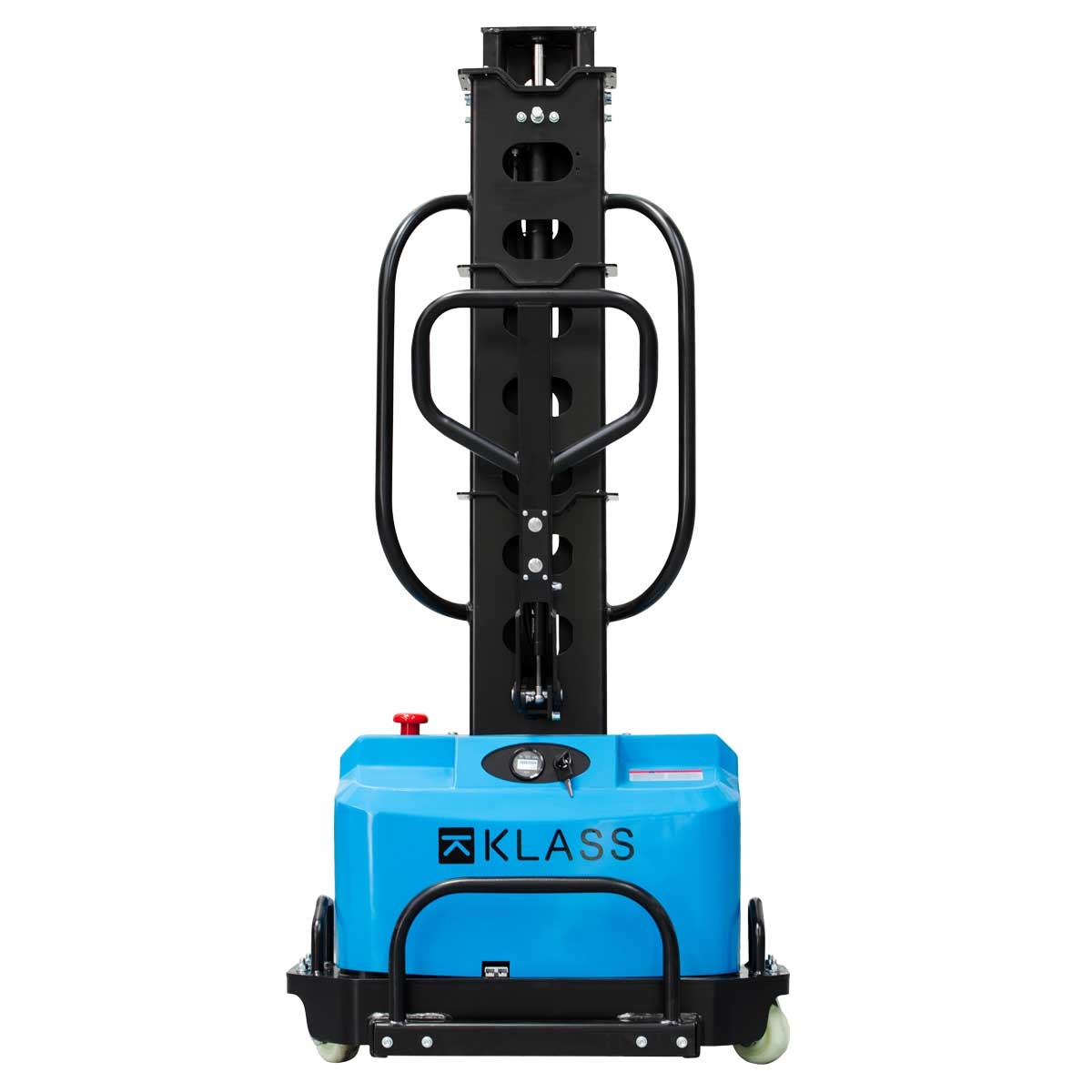

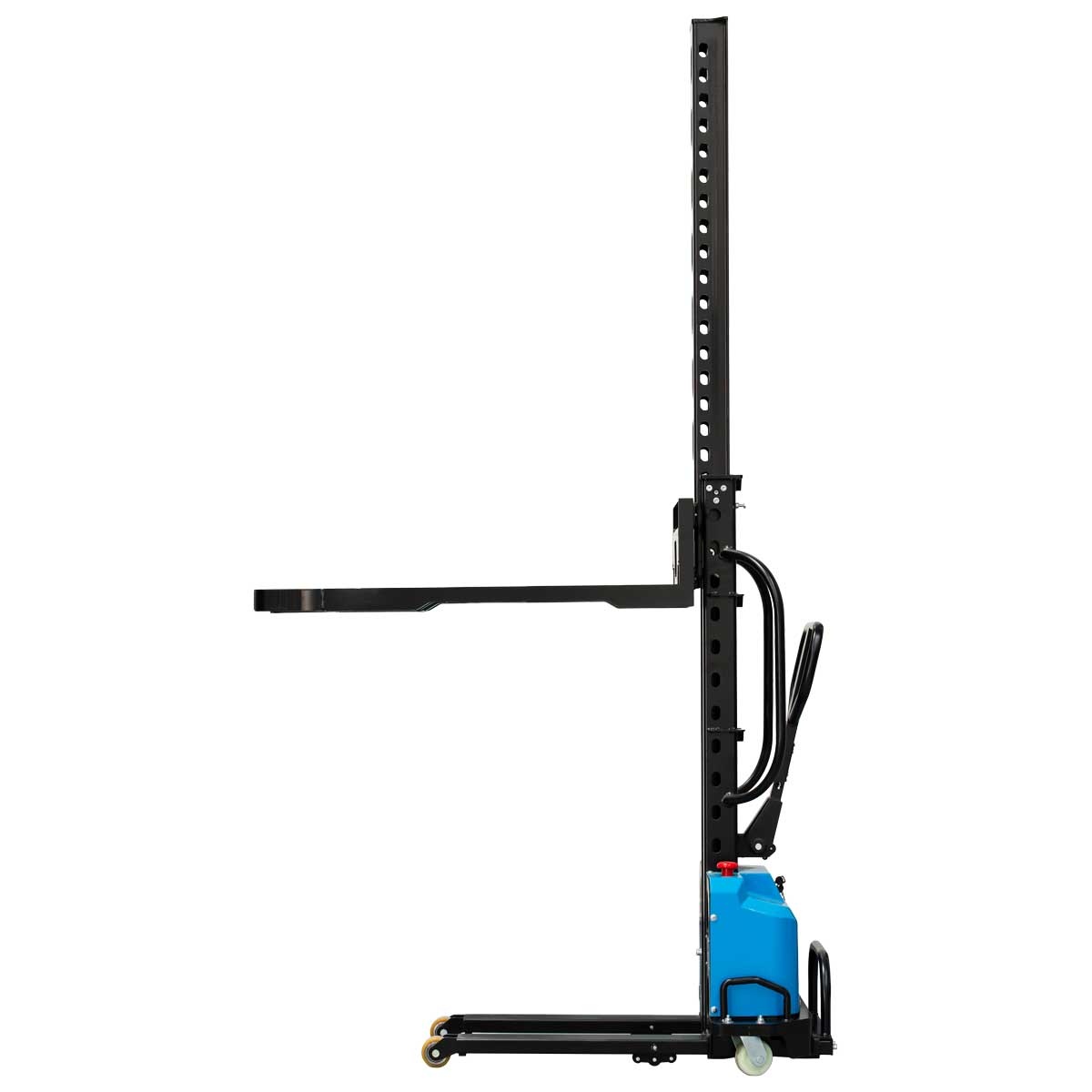

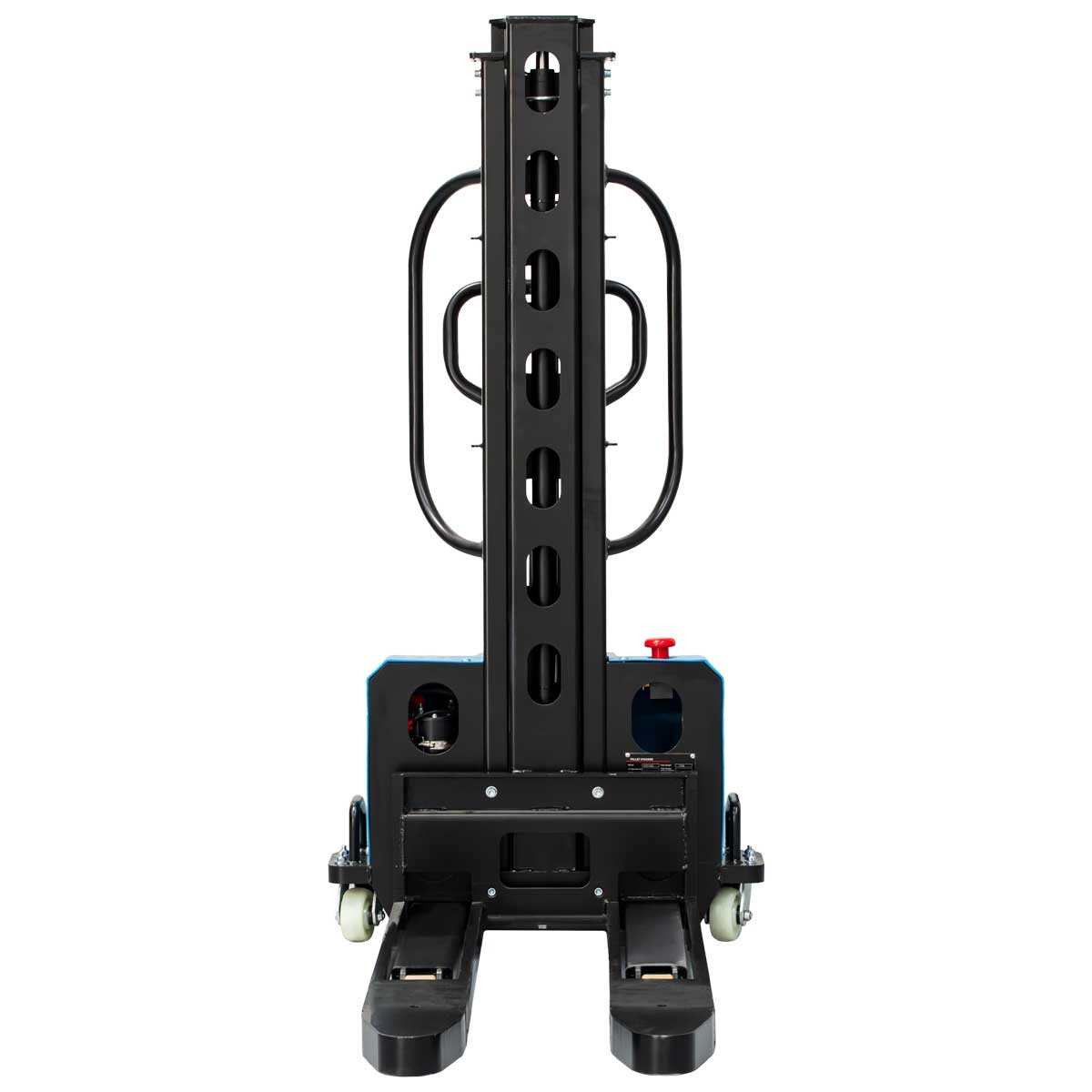

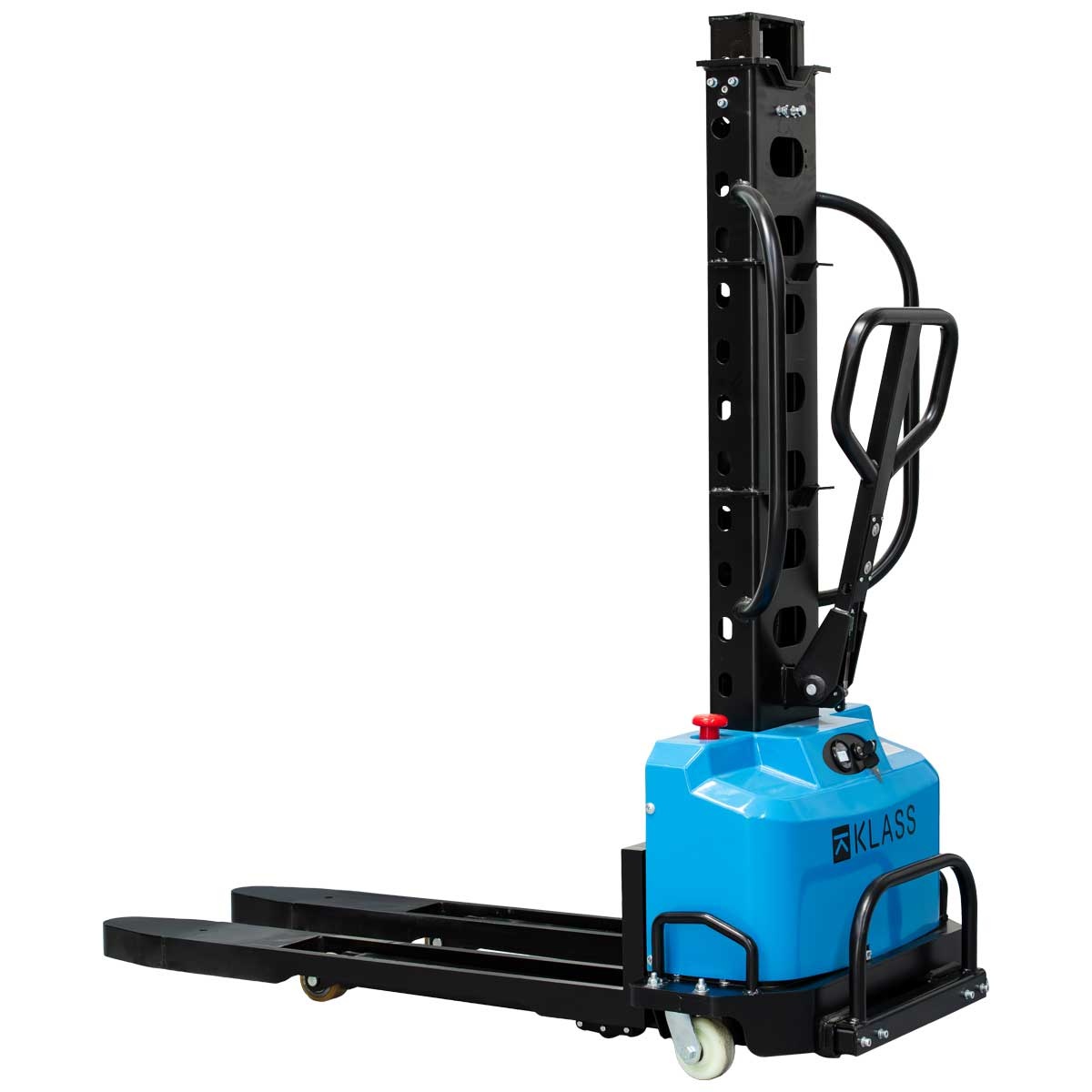

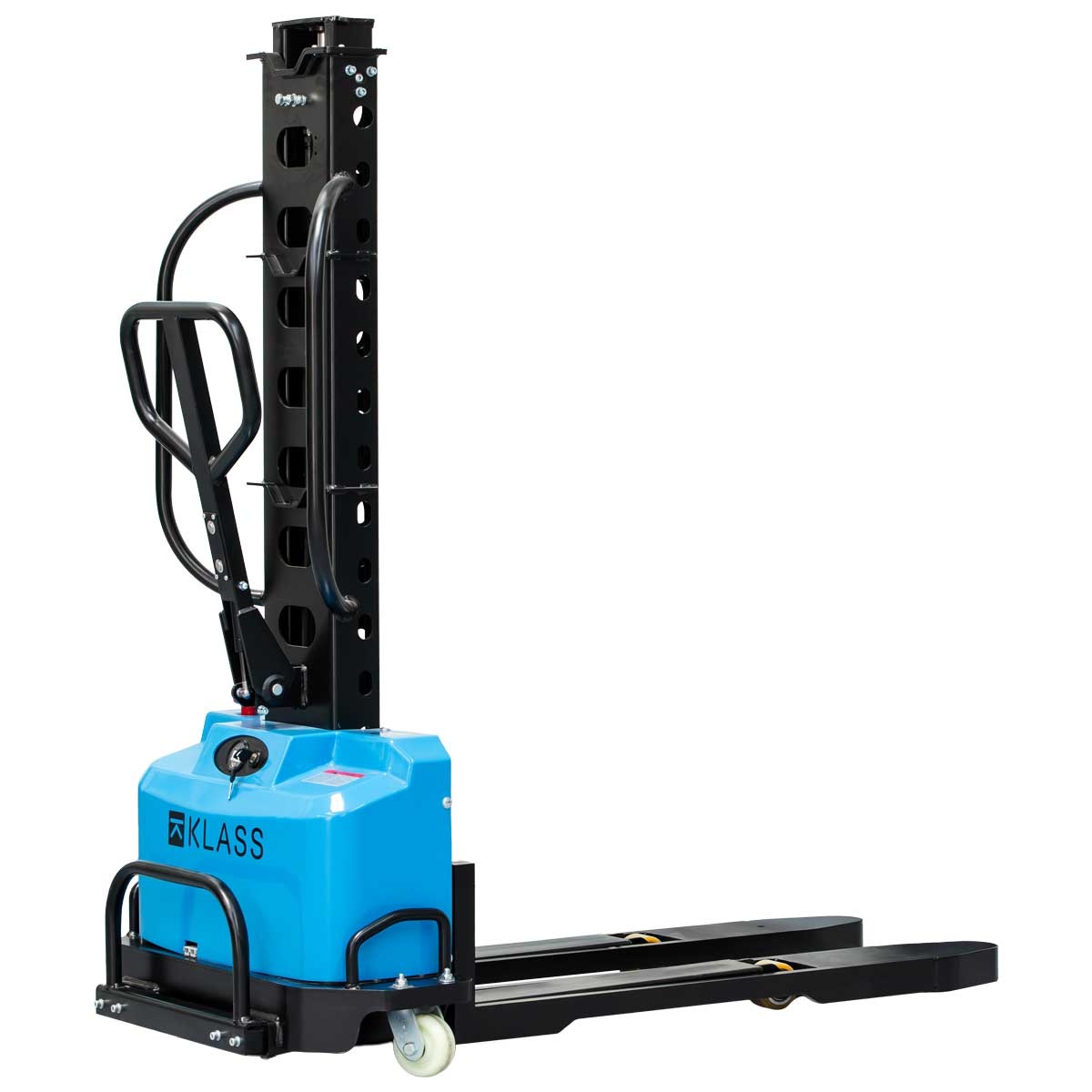

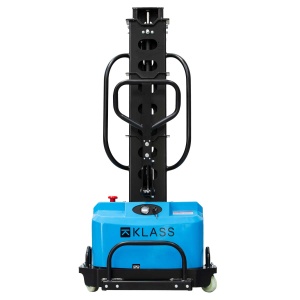

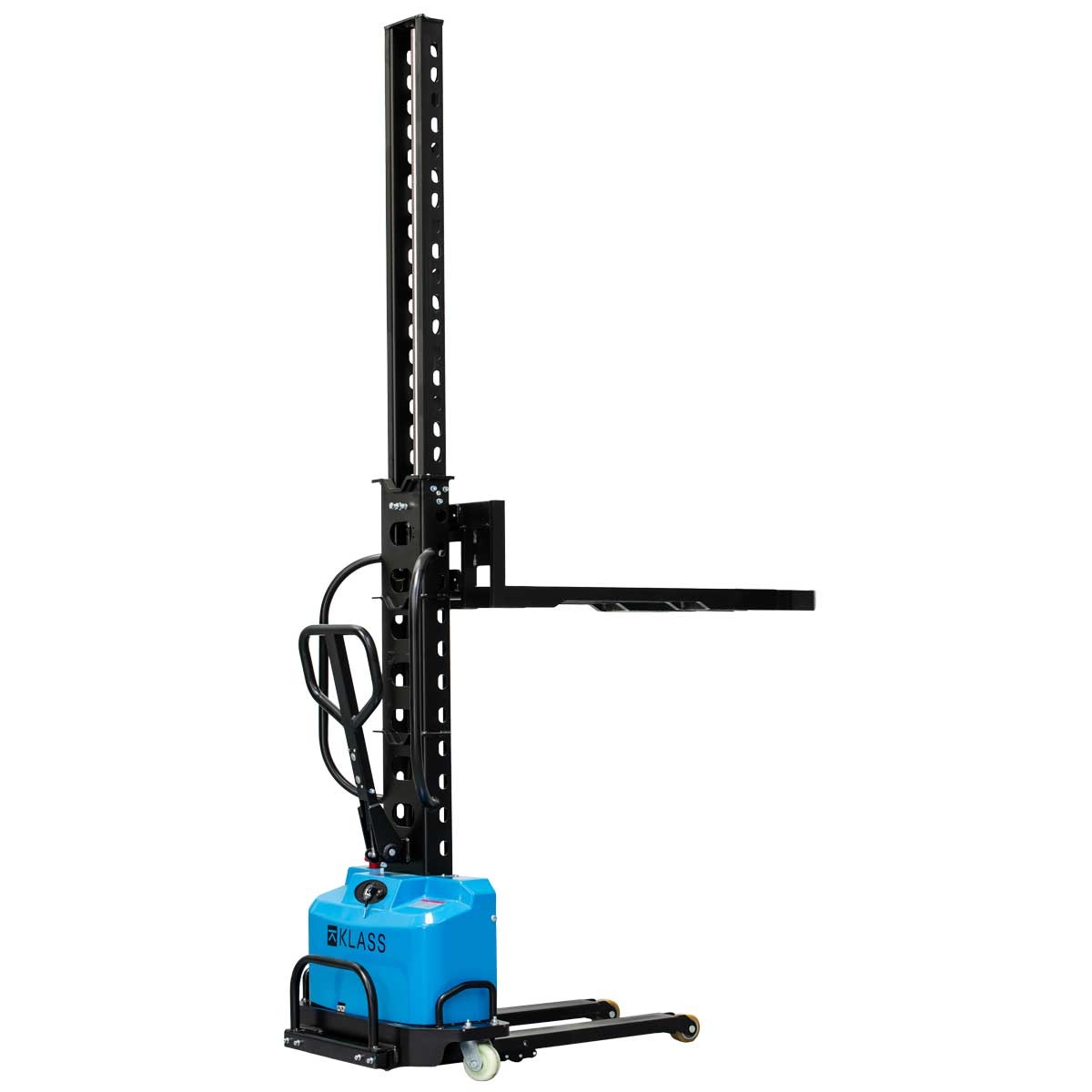

SCDS0513 Transpalet manual cu autoincarcare 500 kg, inaltime ridicare 1.300 mm, baterie AGM

Descriere

• Echipament multifunctional care integreaza transportul, stivuirea si urcarea pe rampe;

• Poate urca direct in caroseria vehiculului, facilitand incarcarea si descarcarea

• Design usor, manevrare confortabila si fara efort;

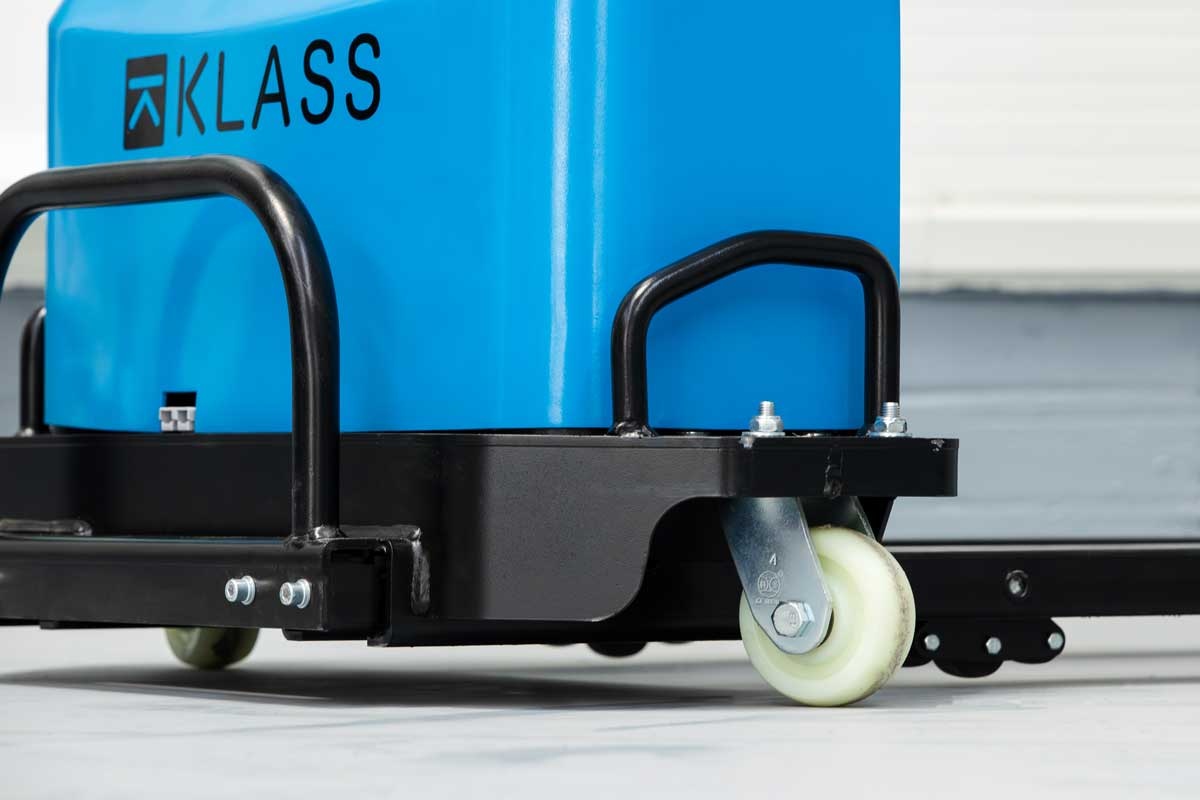

• Picioarele de sprijin sunt dotate cu roti de ghidaj oscilante, permitand introducerea rapida si simpla a transpaletului in caroserie;

• Cilindru cu dubla actionare, ce asigura blocarea si ridicarea alternativa pentru o functionare sigura si eficienta.

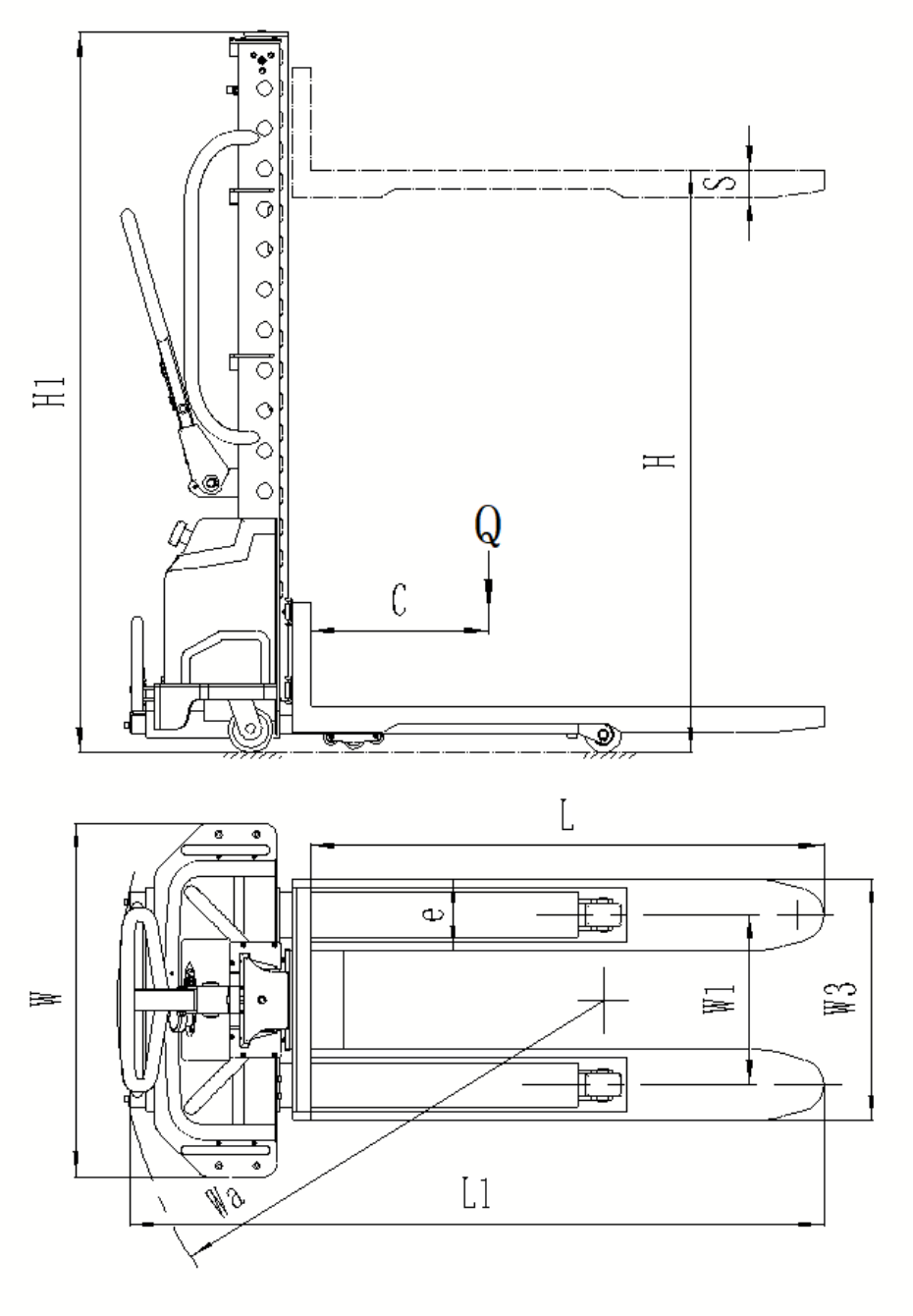

Model		SCDS0513
Capacity	Q(kg)	500
Load center	C(mm)	400
Type of lifting		Electric
Operating type		Walkie
Material		Nylon/PU
Wheel base	y(mm)	850
Front wheel base	W1(mm)	380
Back wheel base	b10(mm)	672
Quantity of Steering/Bearing/Balance Wheel		2/2/6
Bearing wheel size	mm	Φ80×50
Steering wheel size	mm	Φ100×45
Balance wheel size	mm	Φ40×30
Training wheel size	mm	Φ30×30
Min. fork height	mm	90
Max. fork height	h3(mm)	1300
Fork outside width	W3(mm)	540
Fork inside width	mm	220
Fork length	L(mm)	1150
Single fork size	e/s(mm)	160×60
Overall length	L1(mm)	1555
Overall width	W(mm)	790
Overall height	H1(mm)	1617
Whole height (after tape file shelf)	H4(mm)	2870
Min. turning radius	Wa(mm)	1120
Lifting speed (laden/unladen)	mm/s	70/100
Lowering speed (laden/unladen)	mm/s	100/80
Lift motor	Kw	12/0.8
Battery capacity	V/Ah	12/33
Battery weight	Kg	10
Net weight	Kg	215
